LCH II Flex Series

Product Header Image

  • True Flexibility

  • Type-C All-in-One Interface

  • Ultra High Refresh Rate (≥4800Hz)

  • High Contrast Ratio (8000:1)

Download the Brochure

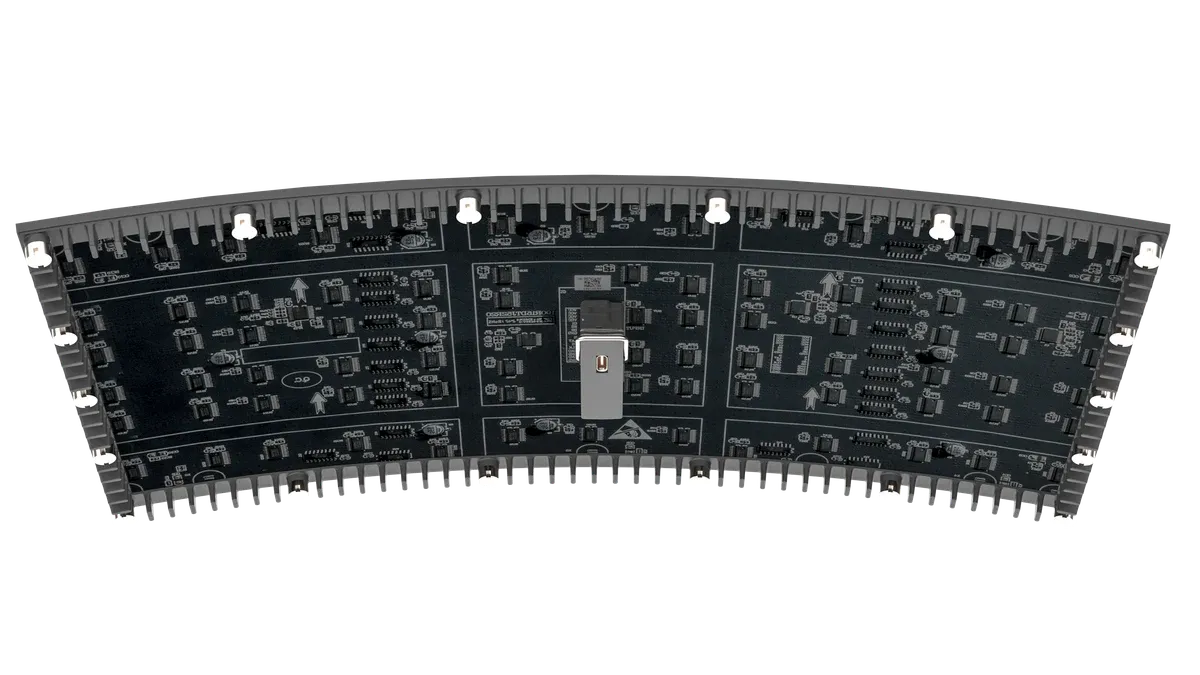

The LCH II Flex Series is a revolutionary flexible LED display module from Leyard’s MiniBox II family, designed for dynamic and creative indoor installations. Combining cutting-edge Type-C integration, ultra-high performance, and exceptional bendability, this series enables seamless concave, convex, and cylindrical display solutions without compromising on image quality or reliability. Ideal for immersive environments where curvature and flexibility are key, the LCH II Flex brings innovation, simplicity, and brilliance to every project.

  • Product Icon Image

    Ultra Slim

    Modules attach directly to simple sheet metal cabinets, reducing weight and complexity.

  • Product Icon Image

    High reliability

    Single-cable connection simplifies wiring and improves safety.

  • Product Icon Image

    Smart Control Compatibility

    Highly integrated with voltage, current, and temperature protection.

Product Image 0

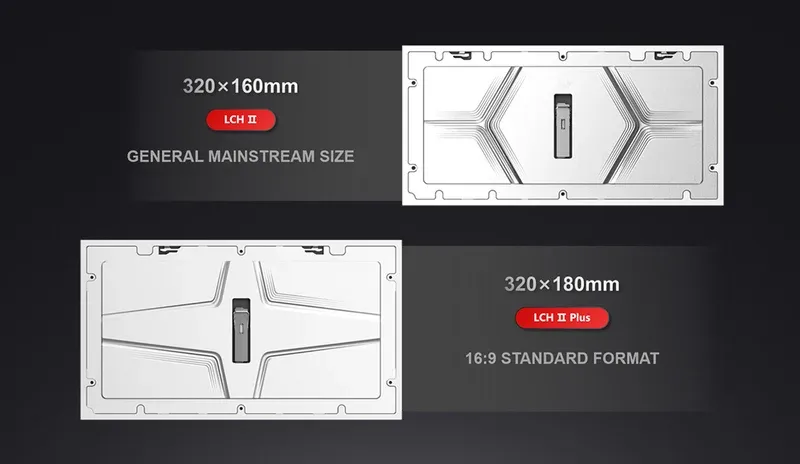

Two Sizes Available

320×160mm / 320×180mm LED module dimensions optional

Product Image 1

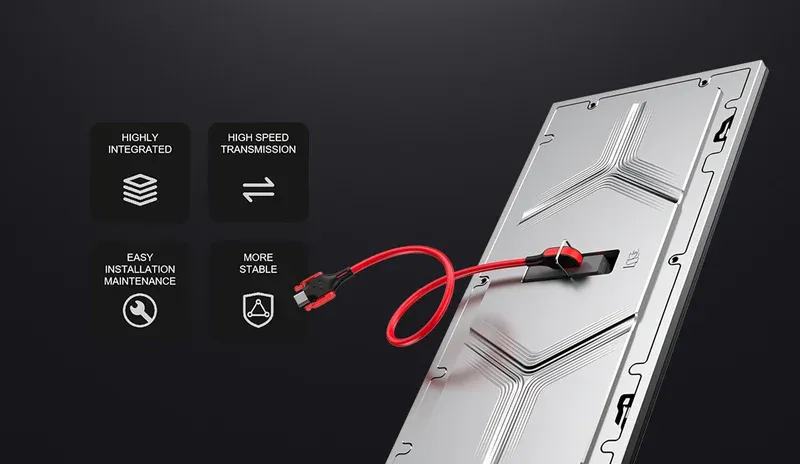

Type-C Connector

Product Image 2

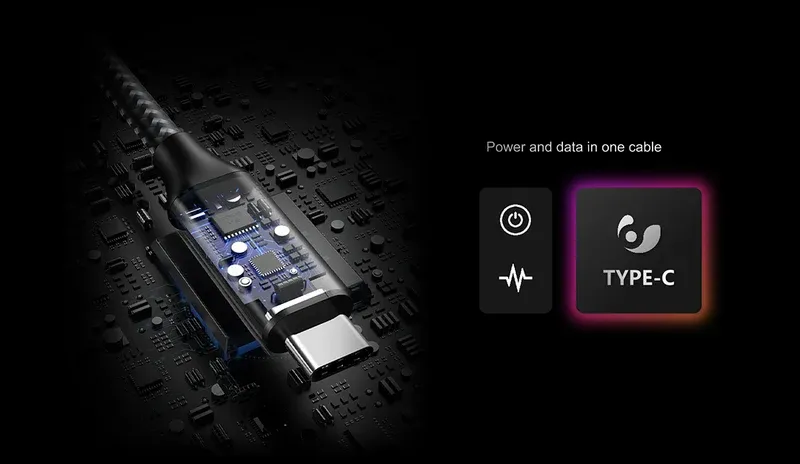

Highly Integrated

> 2 in 1 (Power & Signal)

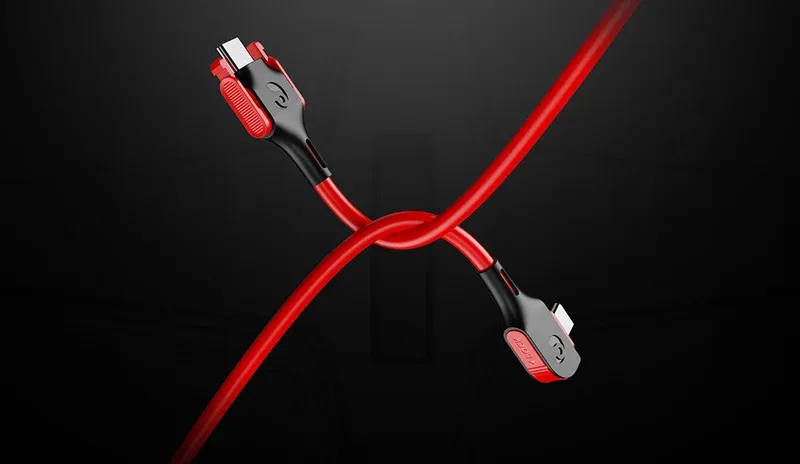

Product Image 3

More Convenient Connection

It is more convenient to insert the cable’s connector into the port of LED module without distinguishing the correct direction.

Product Image 4

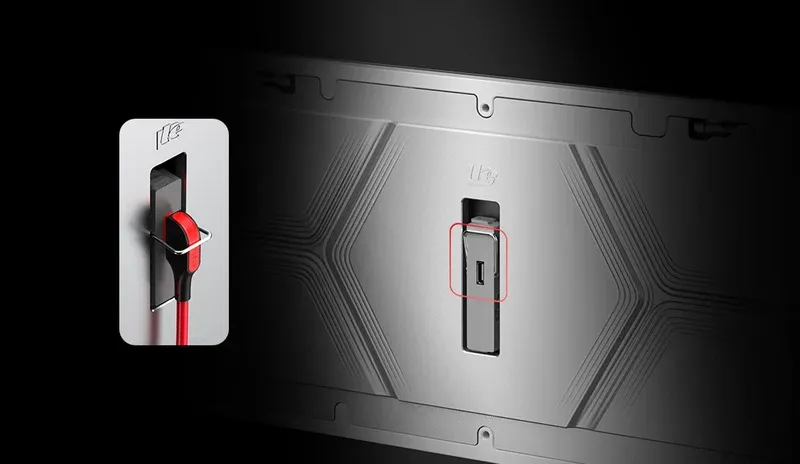

Safety Buckle Design

Safety buckle design of the module’s back cover which locks the connector position to ensure that the cables are secure and no loose.

Product Image 5

Self-developed Chip LYD168

Strong anti-electromagnetic interference ability, featuring with intelligent set up, smart color-temp adjustment, smart brightness adjustment, intelligent data storage, etc.

Product Image 6

DTL Transmission Protocol

Self-developed DTL transmission protocol for intelligent data transmission USB3.1, more efficient and stable

Product Image 7

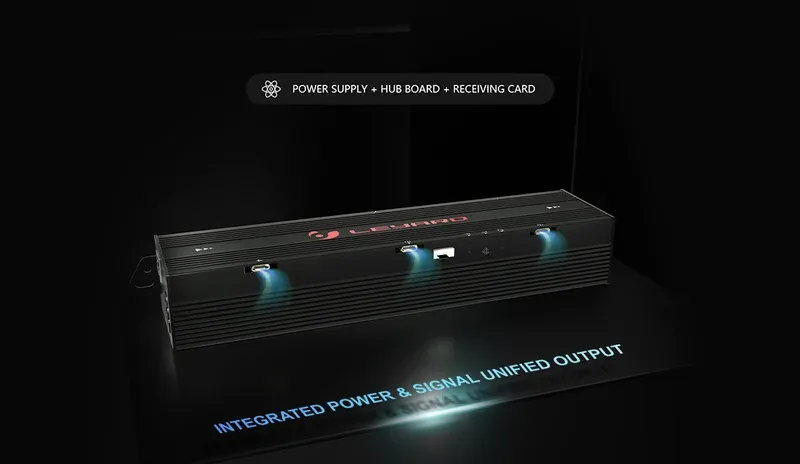

Intelligent Controller M16

Hardware integrated: power supply + HUB board + receiving card. Integrated power & signal unified output

Product Image 8

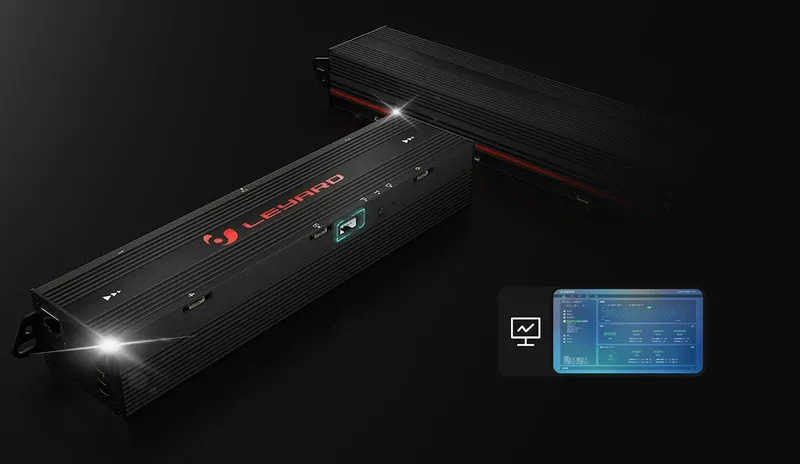

Detection & Protection

Intelligent over-current, over-voltage and over-temperature protection

Product Image 9

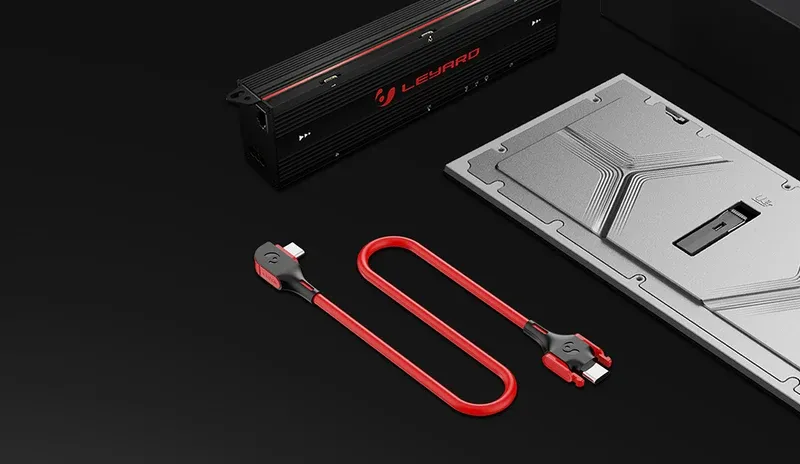

Professional LED Display Kit

MiniBox Ⅱ LED Modules

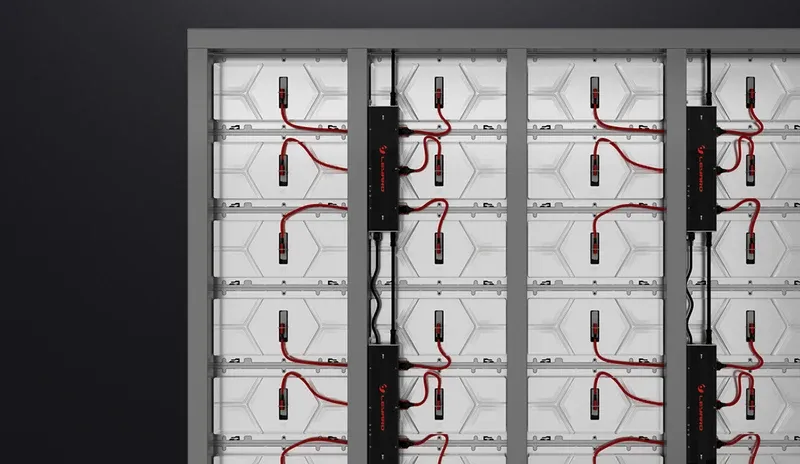

Product Image 10

Simplify Installation

Designed for easier installation and greatly improve its efficiency of the whole engineering process.

Product Image 11

Support 3D/HDR Display

Compared with ordinary images, MiniBox Ⅱ can provide more dynamic range and image details.

Product Image 12

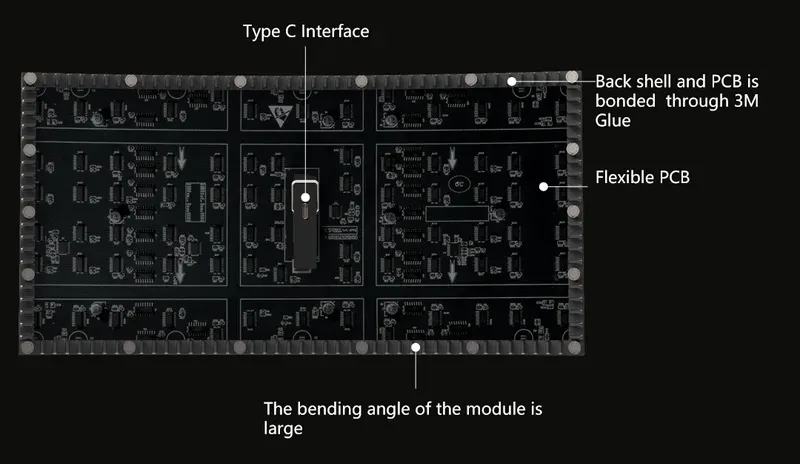

Flexible Module With Type C Interface

Power & Data All in One Port

Product Image 13

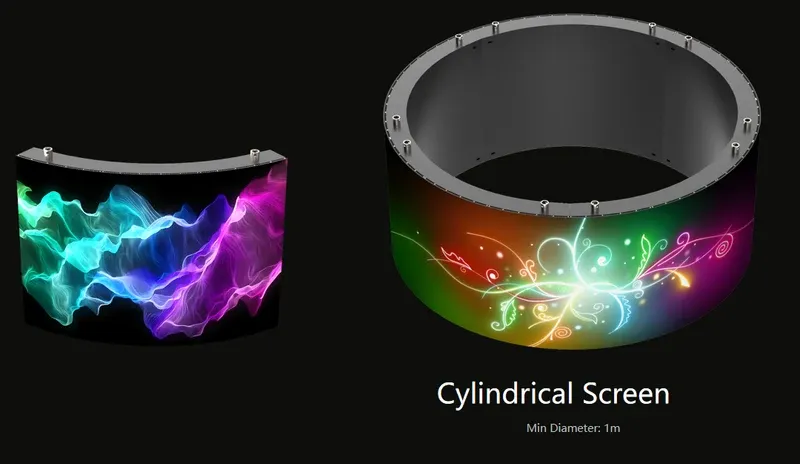

Cylinder Wall

The Minimum Diameter Can be 1m Formed by LCH II Flex

Product closing image 1
Product closing image 2

Specifications

Item
LCH1 II Flex
LCH1.2 II Flex
LCH1.5 II Flex
LCH1.8 II Flex
LCH2 IIFlex
LCH2.5 II Flex
Pixel Configuration
SMD
SMD
SMD
SMD
SMD
SMD
Pixel Pitch (mm)
1
1.25
1.53
1.86
2
2.5
Module Resolution (WxH)
320x160
256x128
208x104
172x86
160x80
128x64
Module Size (mm)(WxH)
320x160
320x160
320x160
320x160
320x160
320x160
Module Weight(Kg)
0.21±0.05
0.21±0.05
0.21±0.05
0.21±0.05
0.21±0.05
0.21±0.05
Unit Area (㎡)
0.0512
0.0512
0.0512
0.0512
0.0512
0.0512
Brightness (nits)
1,000,000
640,000
422,500
288,906
250,000
160,000
Color Temperature (K)
≥550
≥550
≥500
≥500
≥500
≥600
Cabinet Resolution (dots)
3000—38000，Adjustable
3000—38000，Adjustable
3000—38000，Adjustable
3000—38000，Adjustable
3000—38000，Adjustable
3000—38000，Adjustable
Viewing Angle (H/V)(°)
160 / 140
160 / 140
160 / 140
160 / 140
160 / 140
160 / 140
Contrast Ratio
8000:1
8000:1
8000:1
8000:1
8000:1
8000:1
Min Diameter of Concave & Convex Application (m)
1
1
1
1
1
1
Max Power Consumption (W/㎡)
≤430
≤430
≤345
≤345
≤345
≤390
Ave Power Consumption (W/㎡)
≤144
≤144
≤115
≤115
≤115
≤130
Power Supply
DC:4.2
DC:4.2
DC:4.2
DC:4.2
DC:4.2
DC:4.2
Single Module Current（A）
5
5
4
4
4
4.5
Drive Mode（Constant Current Drive）
54S
64S
52S
43S
40S
64S
Frame Rate(Hz)
50&60
50&60
50&60
50&60
50&60
50&60
Refresh Rate(Hz)
≥4800
≥4800
≥4800
≥4800
≥4800
≥4800
Working Temperature (°C)
-10℃ ~ 40℃
-10℃ ~ 40℃
-10℃ ~ 40℃
-10℃ ~ 40℃
-10℃ ~ 40℃
-10℃ ~ 40℃
Working Humidity (RH)
10 ~ 80% no condensation
10 ~ 80% no condensation
10 ~ 80% no condensation
10 ~ 80% no condensation
10 ~ 80% no condensation
10 ~ 80% no condensation
