Innovative Fine Pitch LED Display Module
LCH II Series
Innovative Fine Pitch LED Display Module
LCH II Series
-
Type-C All-in-One Interface
-
Seamless Splicing
-
Self-Developed LYD168 Chip

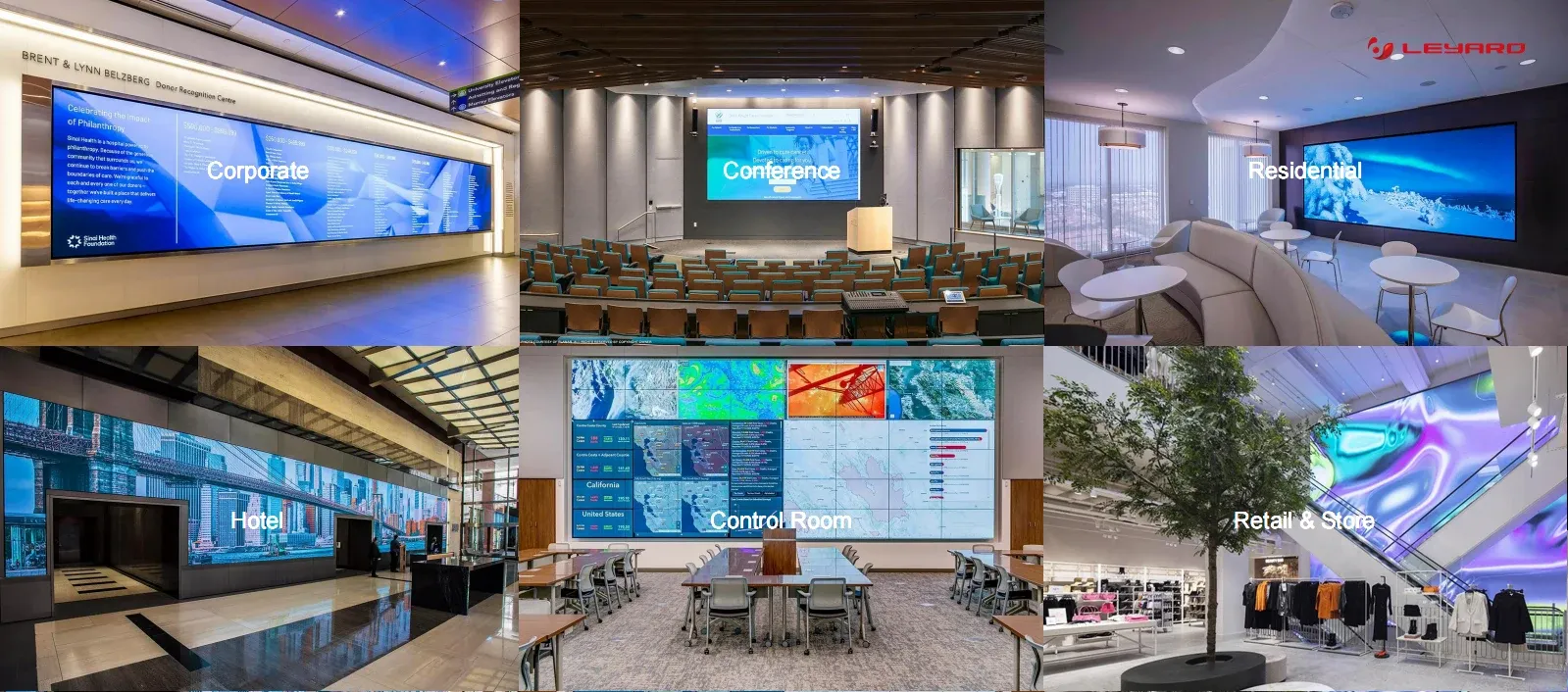

The LCH II Series is a groundbreaking fine pitch LED display module from Leyard’s MiniBox II family, designed to deliver superior performance, effortless installation, and exceptional visual clarity. With its industry-first Type-C all-in-one interface, intelligent integration, and sleek modular design, the LCH II redefines flexibility and reliability for high-end indoor applications. Whether used in corporate, retail, residential, or specialized environments, it offers seamless splicing, brilliant color reproduction, and user-friendly operation.
-
Creative Splicing
Includes LCH II Flex series for concave/convex applications with a minimum 1m diameter.
-
High Reliability
Wide viewing angle with consistent image quality from every perspective.
-
Smart Control Compatibility
High-speed, stable data transmission compliant with USB 3.1 standards.
Two Sizes Available
320×160mm / 320×180mm LED module dimensions optional
Type-C Connector
> Highly integrated > High speed transmission > Easy installation maintenance > More stable
Highly Integrated
> 2 in 1 (Power & Signal) > Stronger Stability > Easier to install
More Convenient Connection
It is more convenient to insert the cable’s connector into the port of LED module without distinguishing the correct direction.
Safety Buckle Design
Safety buckle design of the module’s back cover which locks the connector position to ensure that the cables are secure and no loose.
Self-developed Chip LYD168
Strong anti-electromagnetic interference ability, featuring with intelligent set up, smart color-temp adjustment, smart brightness adjustment, intelligent data storage, etc.
DTL Transmission Protocol
Self-developed DTL transmission protocol for intelligent data transmission USB3.1, more efficient and stable.
Intelligent Controller M16
Hardware integrated: power supply + HUB board + receiving card. Integrated power & signal unified output
Detection & Protection
> Intelligent voltage detection > Intelligent over-current, over-voltage and over-temperature protection > All aluminum frame, excellent heat dissipation
Professional LED Display Kit
> MiniBox Ⅱ LED Modules > Intelligent Control Box M16 > Type-C Cable (Power&Data All in One)
Simplify Installation
> Designed for easier installation and greatly improve its efficiency of the whole engineering process. > Note: The order of connecting modules is according to the serial number marked on the ports of the intelligent controller M16.
Support 3D/HDR Display
MiniBox Ⅱ can provide more dynamic range and image details. According to LDR (Low-Dynamic Range) images with different exposure times.
Flexible Module With Type C Interface
Power & Data All in One Port

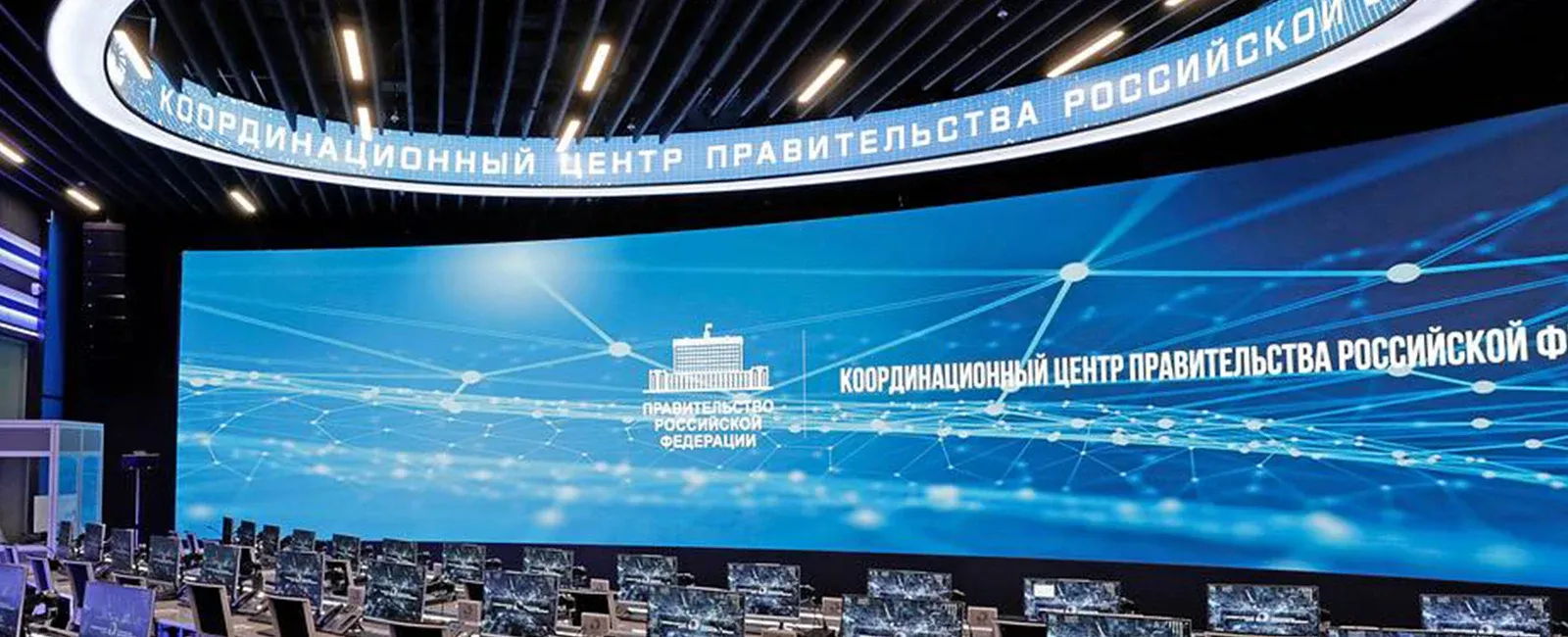

Cylinder Wall
The Minimum Diameter Can be 1m Formed by LCH II Flex
