Indoor Fine Pitch LED Display

HKS II Series

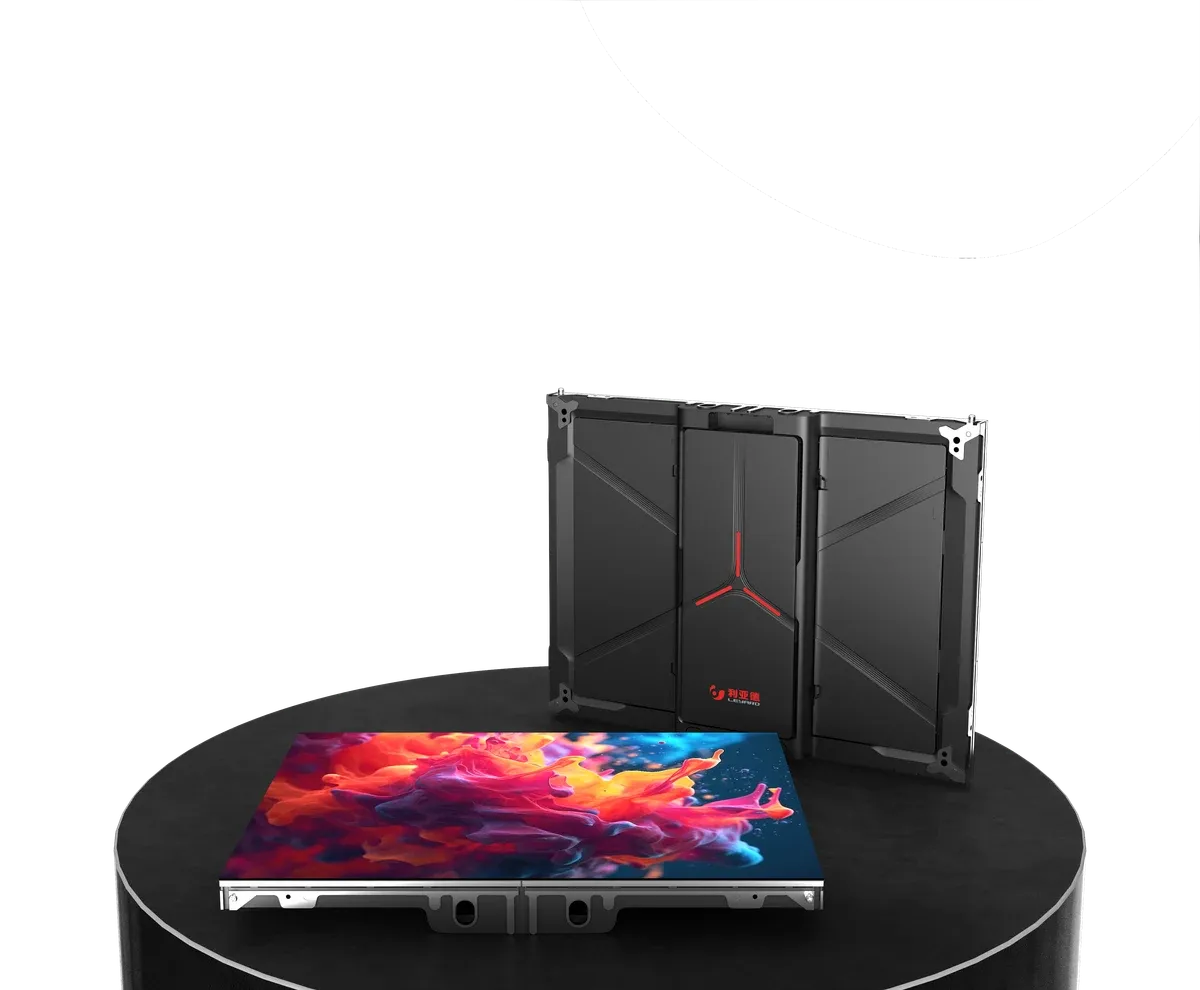

Product Header Image

  • Ultra-Slim & Lightweight Design

  • Seamless Splicing & Easy Maintenance

  • High Refresh Rate

Download the Brochure

The Leyard HKS II Series is a next-generation indoor fine-pitch LED display designed for premium applications that demand exceptional visual performance and installation flexibility. With its ultra-slim profile, lightweight cabinet, and modular magnetic design, HKS II makes installation and servicing easier than ever. Featuring high refresh rate (4800 Hz), HDR support, ultra-wide color gamut, and up to 18-bit grayscale, it ensures smooth, lifelike visuals with superior clarity and accuracy. Ideal for corporate, control, retail, and hospitality environments, the HKS II Series delivers an immersive viewing experience that elevates any indoor space.

  • Product Icon Image

    High Reliability

    high-strength aluminum alloy cabinet resists deformation and offers long-term reliability.

  • Product Icon Image

    High Refresh Rate

    high refresh rate eliminates flicker and moiré, even when filmed by cameras.

  • Product Icon Image

    Fast Installation

    supports front & rear maintenance, creative splicing, and fast setup with magnetic modules.

Product Image 0

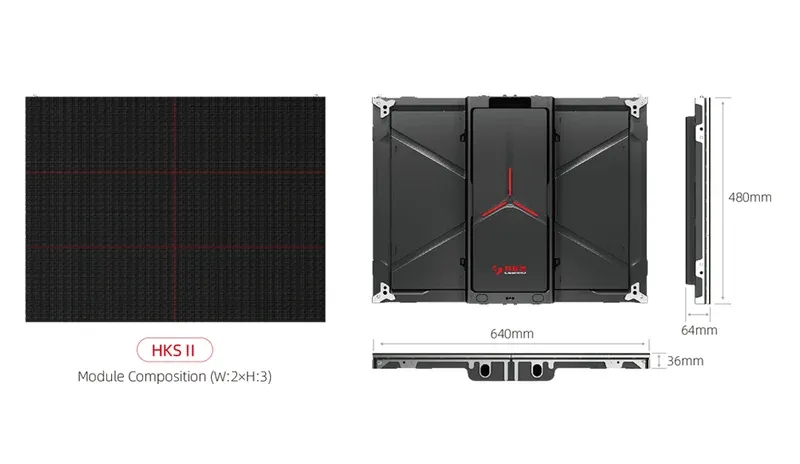

Dimension & Format

The new Type-C connector lets power and data in one cable for high speed transmission and more stable.

Product Image 1

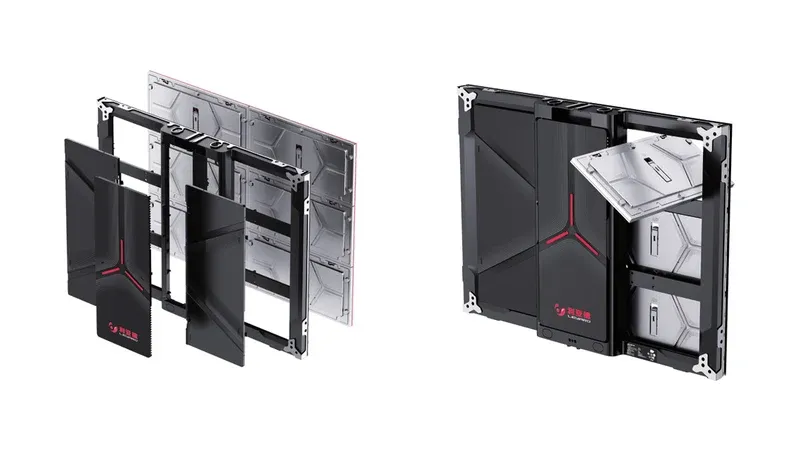

Modular Design and Highly Integration

Modular design with simplified structure details for highly integration, easy installation and maintenance.

Product Image 2

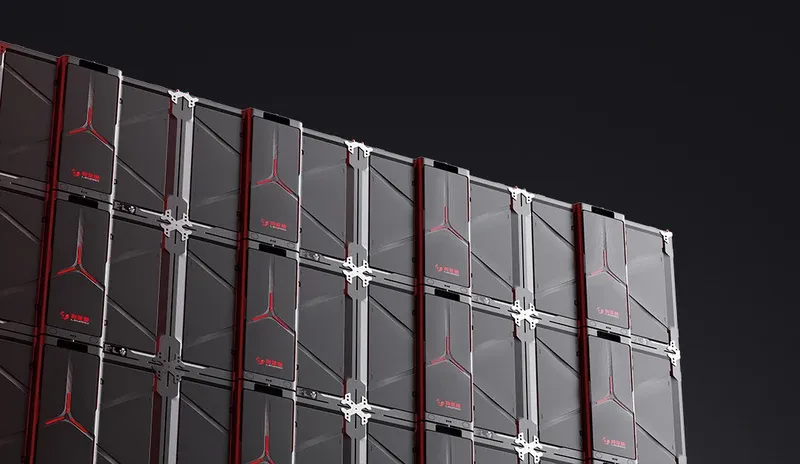

Simplified Connection for Any Setup

Data&power 2 in 1 Type-C cables for modules connection.f3

Product Image 3

Support 3D/HDR Display

compared with ordinary images, MiniBox Ⅱ can provide more dynamic range and image details

Product Image 4

Ultra Wide Color Gamut

maintain consistent color reproduction across different viewing angles

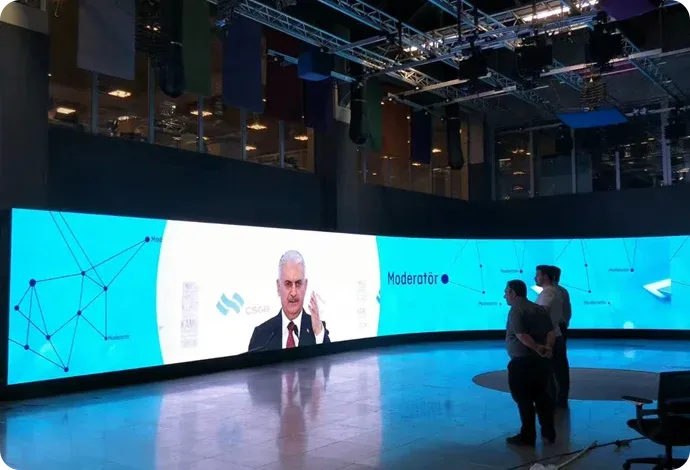

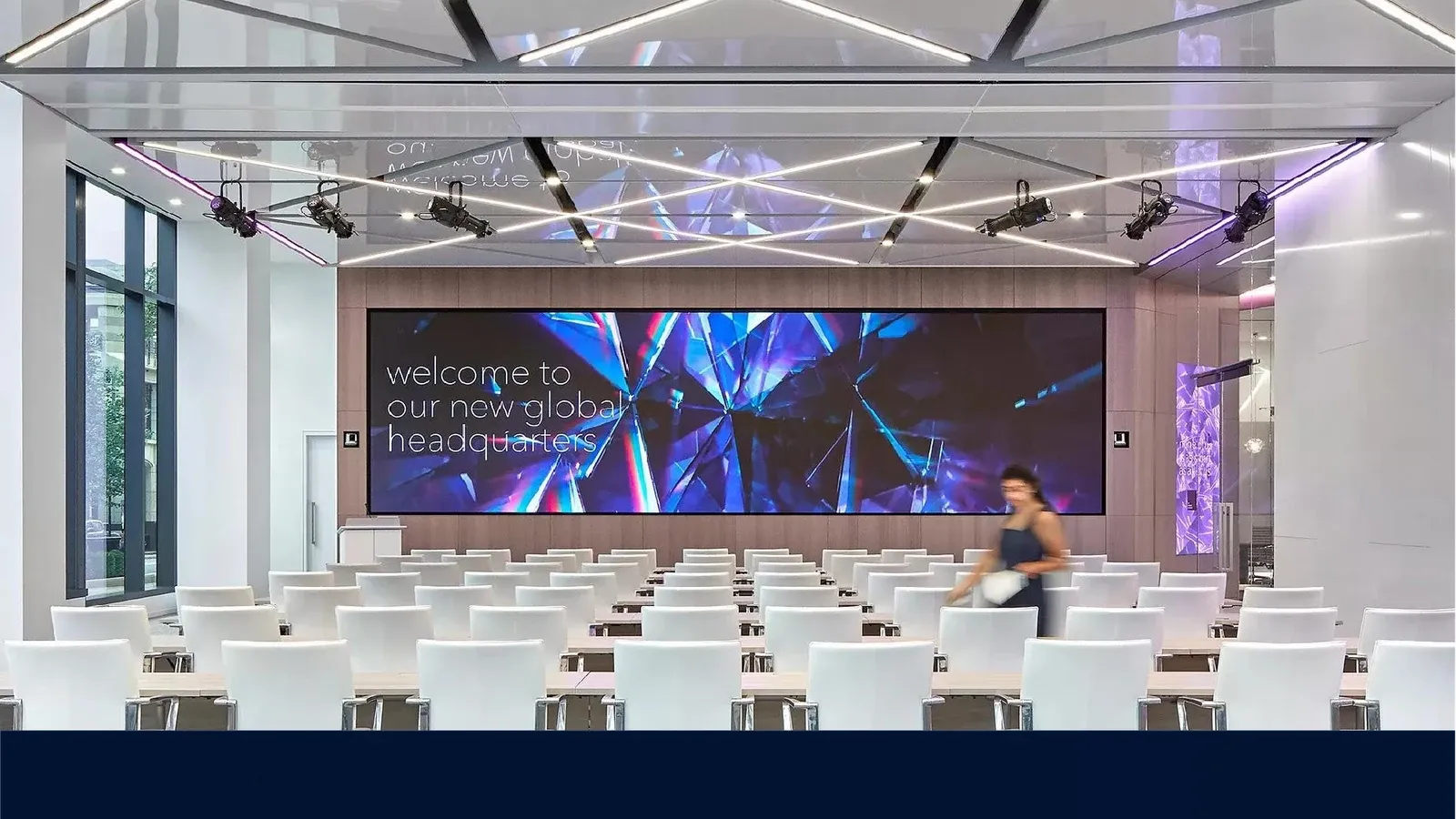

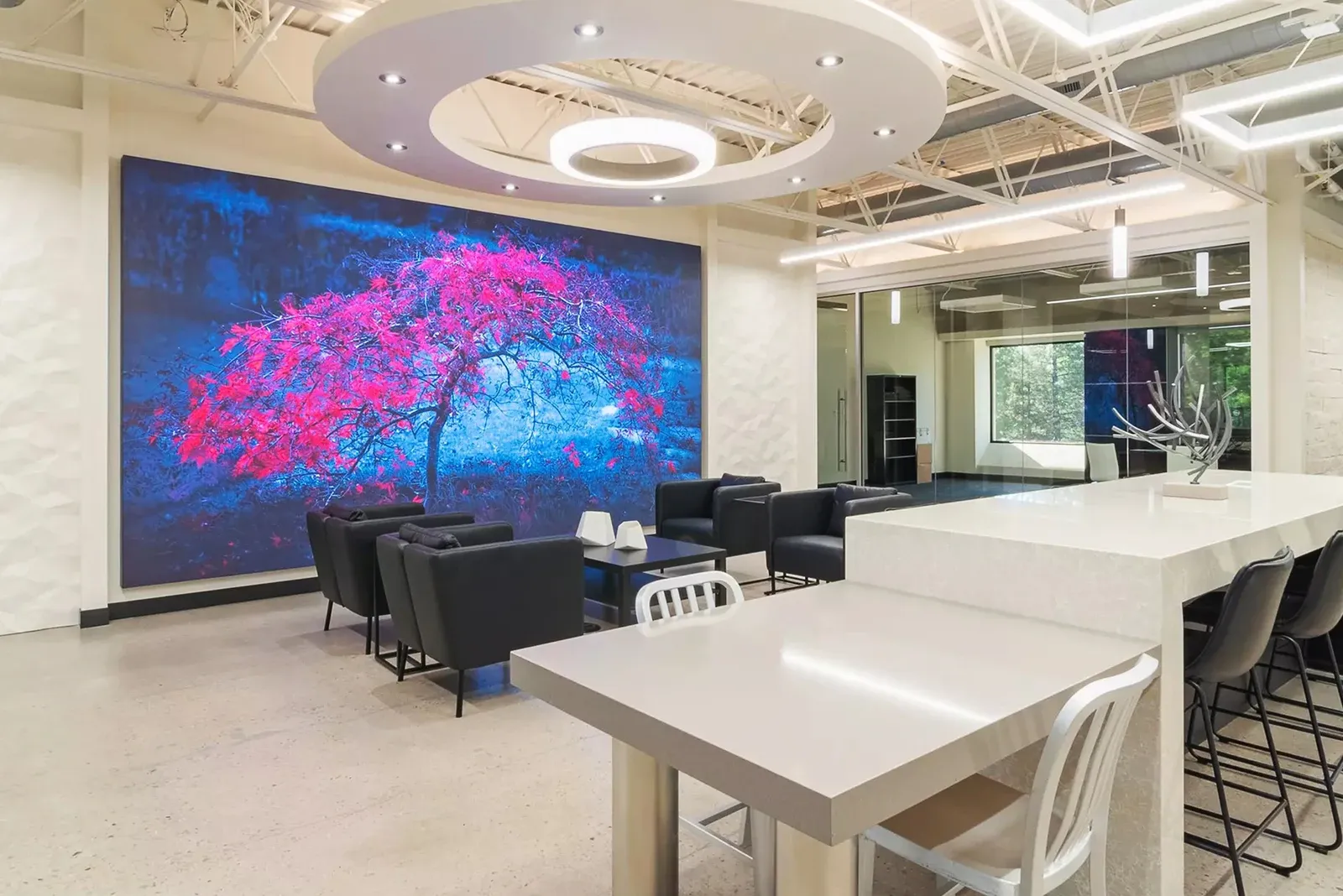

Product closing image 1
Product closing image 2
Product closing image 3

Specifications

Item
HKS1 II
HKS1.2 II
HKS1.5 II
HKS1.8 II
HKS2 II
HKS2.5 II
Pixel Pitch (mm)
1
1.25
1.53
1.86
2
2.5
Module Resolution (WxH)
320 x 160
256 x 128
208 x 104
172 x 86
160 x 80
128 x 64
Module Dimension (WxH, mm)
320x160
320x160
320x160
320x160
320x160
320x160
Module Arrangement (WxH)
2x3
2x3
2x3
2x3
2x3
2x3
Module Resolution (WxH)
640 x 480
512 x 384
416 x 312
344 x 258
320 x 240
256 x 192
Cabinet Size (mm) (WxHxD）
640x480x64
640x480x64
640x480x64
640x480x64
640x480x64
640x480x64
Cabinet Area (㎡)
0.3072
0.3072
0.3072
0.3072
0.3072
0.3072
Weight (kg/cabinet; kg/㎡)
6.5; 21.16
6.5; 21.16
6.5; 21.16
6.5; 21.16
6.5; 21.16
6.5; 21.16
pxel Density (Point/㎡）
1000000
640000
422500
288906
250000
160000
Color Temperature (K)
3000~38000 Adjustable
3000~38000 Adjustable
3000~38000 Adjustable
3000~38000 Adjustable
3000~38000 Adjustable
3000~38000 Adjustable
Viewing Angle (H/V)(°)
160 / 140
160 / 140
160 / 140
160 / 140
160 / 140
160 / 140
Contrast Ratio
8000:1
8000:1
8000:1
8000:1
8000:1
8000:1
Peak Power Consumption (W/cabinet; W/㎡）
150; 490
150; 490
150; 490
150; 490
150; 490
150; 490
Avg Power Consumption (W/cabinet; W/㎡）
50; 165
50; 165
50; 165
50; 165
50; 165
50; 165
Refresh Rate (Hz)
≥4800
≥4800
≥4800
≥4800
≥4800
≥4800
IP Rating (Front /Rear)
IP61 / IP41
IP61 / IP41
IP61 / IP41
IP61 / IP41
IP61 / IP41
IP61 / IP41
Working Temperature (°C)
-10~40
-10~40
-10~40
-10~40
-10~40
-10~40
Working Humidity (RH)
10~80% Non-condensing
10~80% Non-condensing
10~80% Non-condensing
10~80% Non-condensing
10~80% Non-condensing
10~80% Non-condensing
