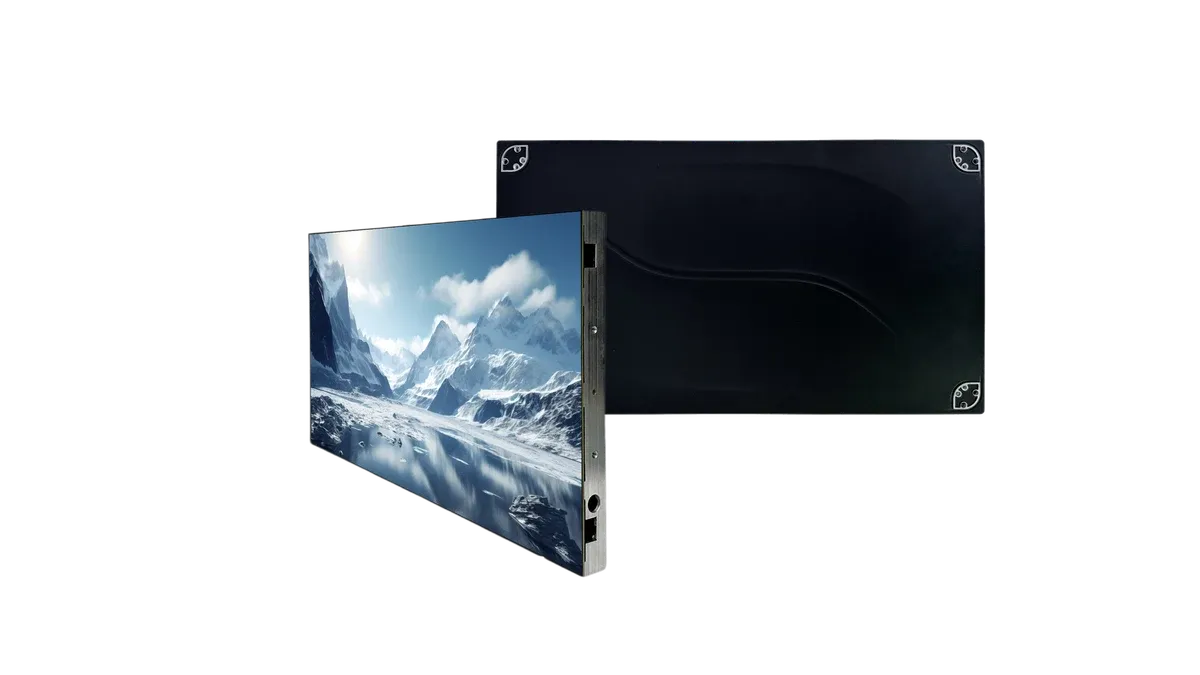

Ultra-Reliable MIP LED with Superior Efficiency

InnoFine-M

Product Header Image

  • Low Power Consumption

  • High Reliability

  • Patented Surface Coating Technology

  • Color Accuracy & Consistency

Download the Brochure

The InnoFine-M Series represents the next step in MIP LED innovation, delivering energy efficiency, durability, and unmatched image quality. Featuring advanced flip-chip common cathode technology and a patented surface coating, this series offers lower power consumption, reduced heat, and longer lifespan. With ultra-thin integration, wide color gamut, and industry-leading contrast, it is engineered to provide immersive visual experiences while maintaining stable long-term operation.

  • Product Icon Image

    Energy Saving

    30% energy savings with lower operating temperatures.

  • Product Icon Image

    High Reliability

    flip-chip common cathode design ensures stable operation and longer life.

  • Product Icon Image

    High Contrast Ratio

    ≥25,000:1 contrast ratio, wide DCI-P3 color gamut, and high color consistency.

Product Image 0

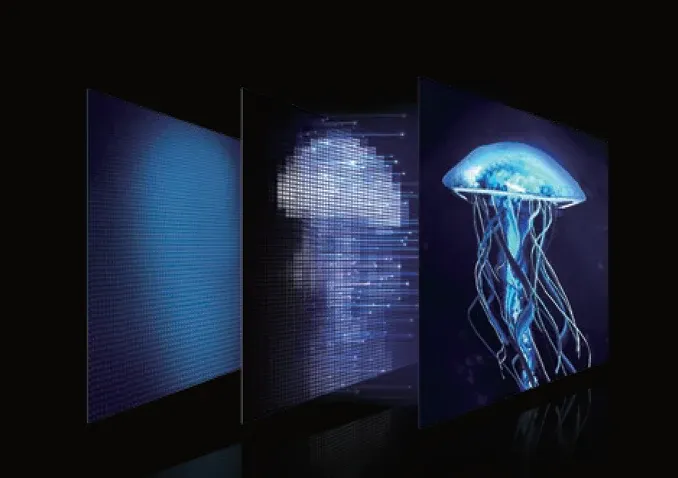

MicroLED high brightness, high contrast

MicroLED in 2000nits and 20000:1 contrast ratio.

Product Image 1

DCI-P3 Wide Color Gamut

delivers richer, more vibrant, and true-to-life colors for an exceptional visual experience.

Product Image 2

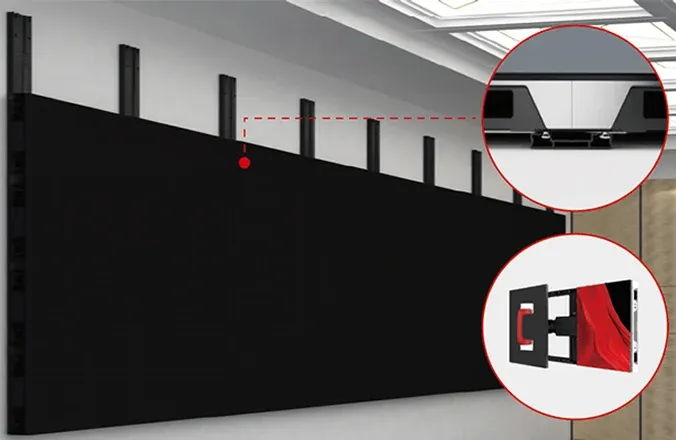

More Details at Low Brightness

MicroLED High Brightness, Hight Contrast. In 2000nits and 30000:1 contrast ratio.

Product Image 3

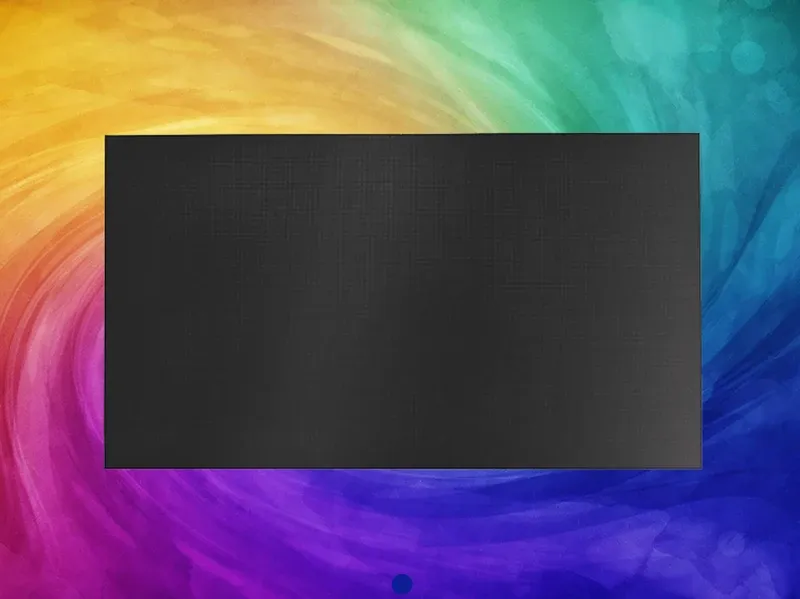

P0.9-P1.25-P1.56 COB

COB Flip Chip on Board, with ultra-small dot pitch and self-developed ink packaging process.

Product closing image 1

Specifications

Item
InnoFine006-M
InnoFine007-M
InnoFine009-M
Pixel Pitch (mm)
0.625
0.78125
0.9375
Scanning Mode
68S
72S
45S
Module Dimensions (mm) (WxH)
150 x 168.75
150 x 168.75
150 x 168.75
Cabinet Size (mm) (WxH)
600 x 337.5
600 x 337.5
600 x 337.5
Cabinet Resolution (WxH)
960 x 540
768 x 432
640 x 360
Led Configuration
COB
COB
COB
Pixel Density (Dot/m²)
2,560,000
1,638,400
1,137,778
Gray Scale
13-22bit
13-22bit
13-22bit
Contrast
35000:1
35000:1
35000:1
Brightness (cd/m²)
1000
1000
800
Module Quantity/Cabinet
8
8
8
Cabinet Material
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Viewing Angle (Degree)
Horizontal 160 Vertical 160
Horizontal 160 Vertical 160
Horizontal 160 Vertical 160
Average Power(Watts)/m²
~150
~150
~200
Max Power(Watts)/m²
~360
~360
~450
Lifetime (hrs)
100,000
100,000
100,000
Operating Temperature
-10℃ ~ +45℃
-10℃ ~ +45℃
-10℃ ~ +45℃
Operating Humidity
10% ~ 90%
10% ~ 90%
10% ~ 90%
Refresh Rate (Hz)
3840 / 7680
3840 / 7680
3840 / 7680
Cabinet Weight/kg
4.5
4.5
4.5
