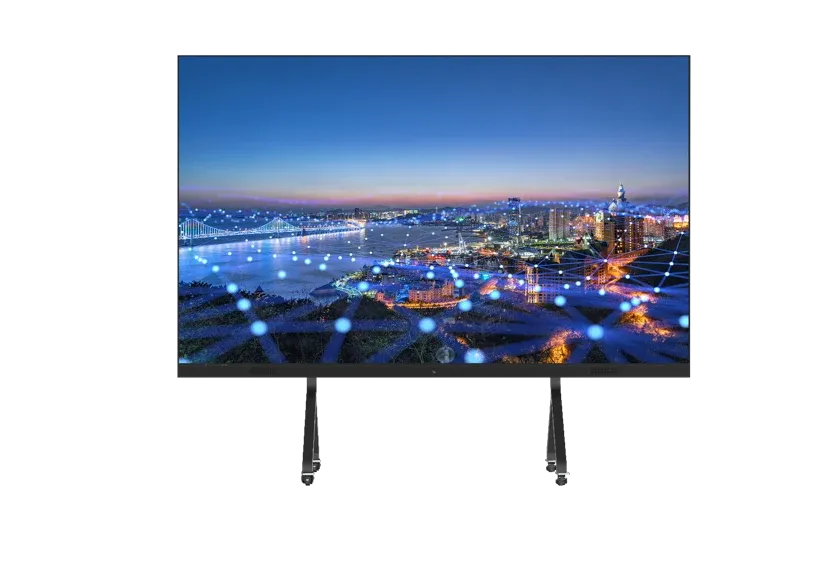

Super thin design, only 20mm thickness, high-end simplicity

InnoBoard

Super thin design, only 20mm thickness, high-end simplicity

InnoBoard

Aviation aluminum alloy frame
2in1 LED common cathod design
Supports hot plug and easy maintenance
Dual -WIFI（2.4G+5G

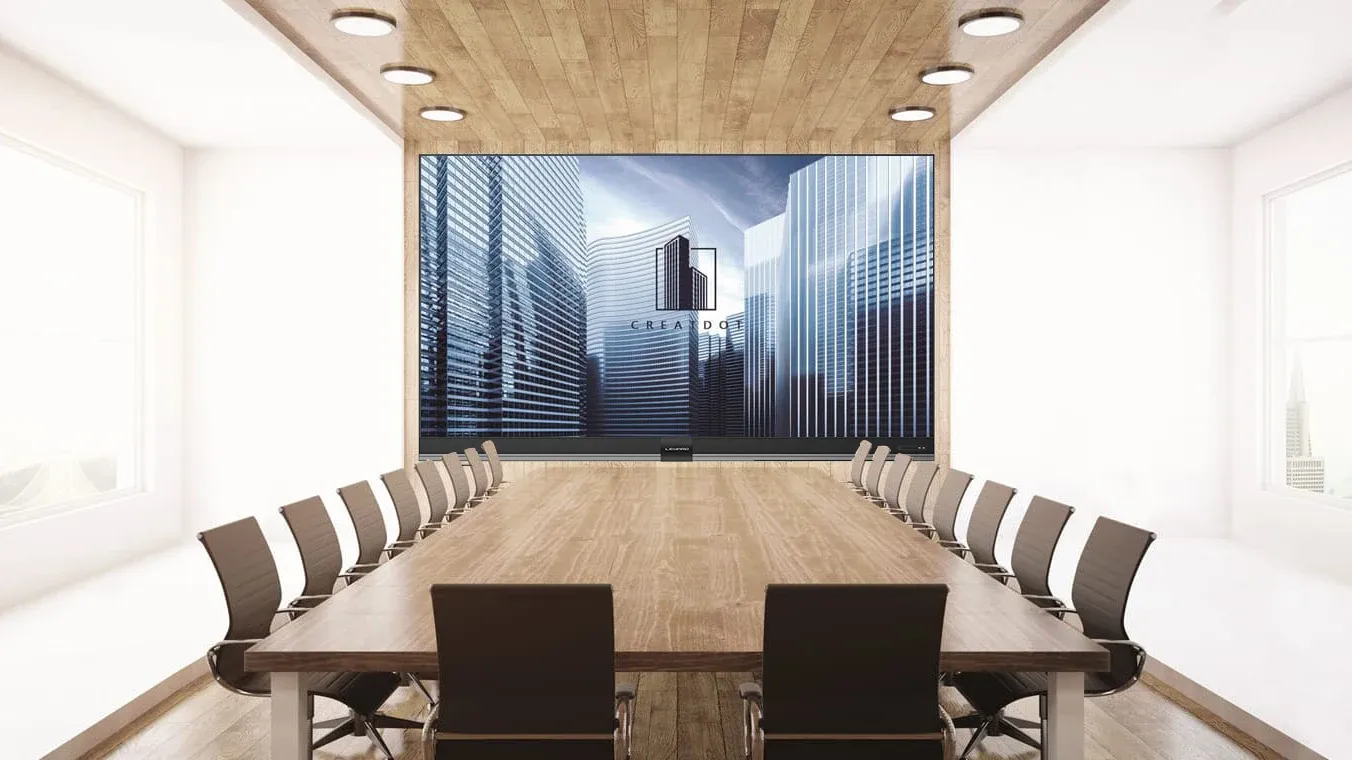

InnoBoard Series, takes the cutting-edge self-lighting MicroLED advanced display technology, with self-developed control chip and system, presenting you exquisite and extraordinary high-end picture quality enjoyment and fascinating immersion experience. Standardized High Definition LED display, highly integrated, extremely thin and narrow frame, ultra-high screen ratio, fast installation, intelligent and easy to use. Built-in Android and windows system as optional. InnoBoard All-in-one enable one-stop collaboration ideal for conference rooms, classroom, multi-function hall, lecture hall, showroom, shopping mall, high-end household and other applications.

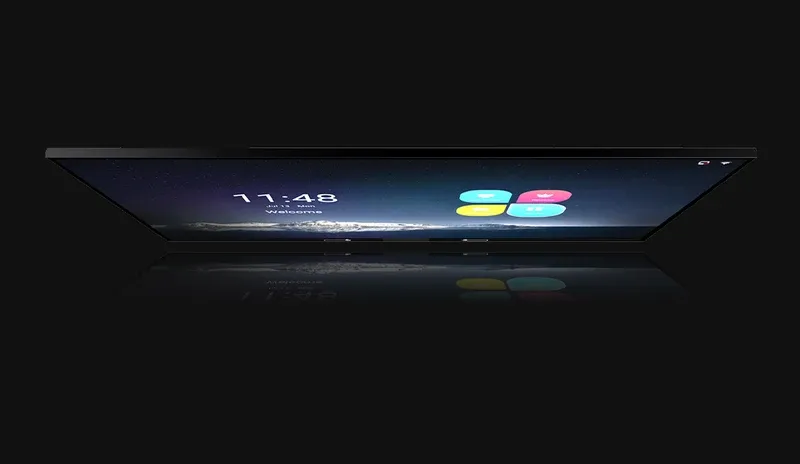

Ultra-thin Design Aviation Aluminum Alloy Frame

Only 20mm thickness. Diamond cutting high-gloss design, reflecting the quality of ingenuity

Easy Installation and Maintenance Design

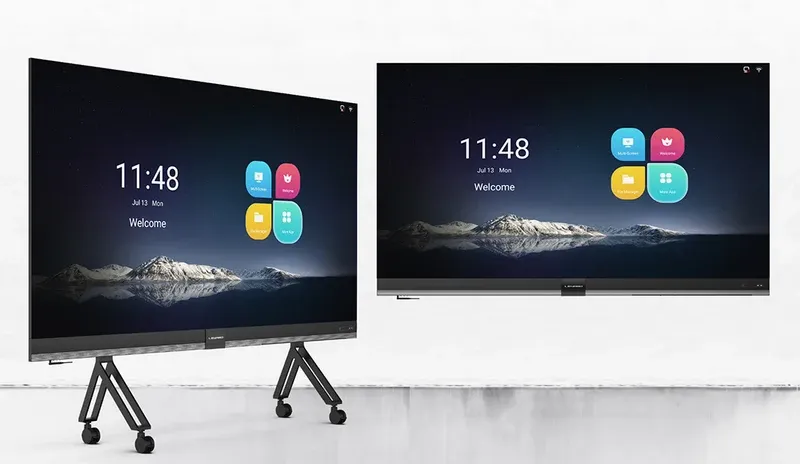

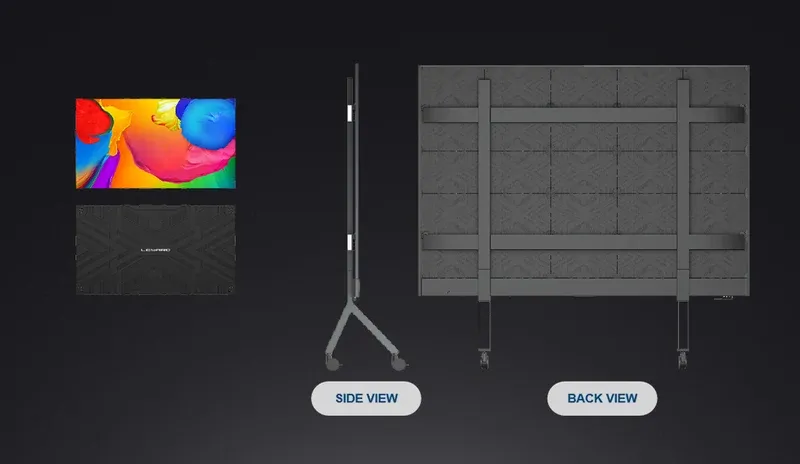

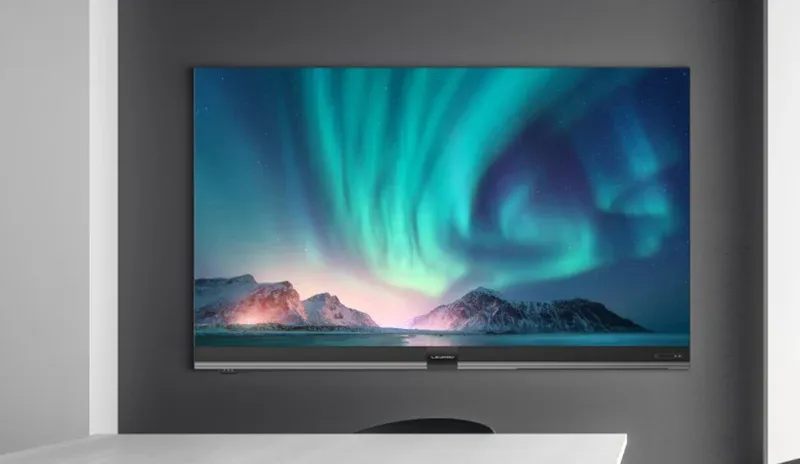

Standing & wall mounting, floating connection is more reliable without stress, supports hot plug for easy maintenance

Dual -WIFI (2.4G+5G)

Supports wireless projection of multiple device: andiord、iOS、Windows connect by WIFI

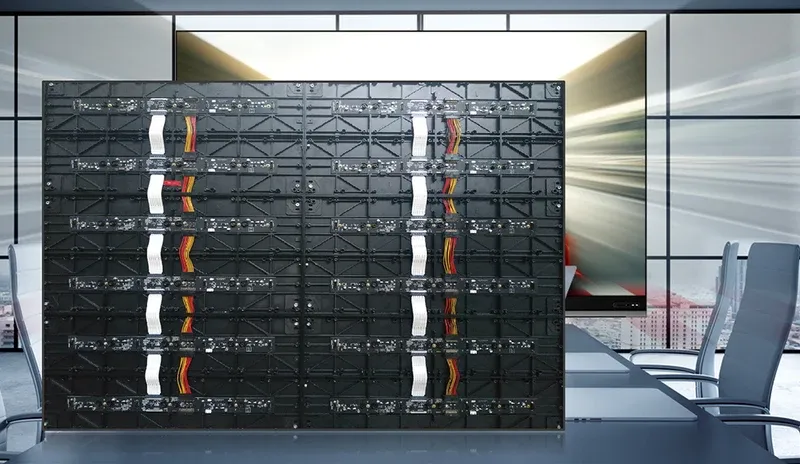

InnoBoard Series LED Cabinet

Cabinet size :600*337.5*20mm; Standard 16:9 aspect ratio; Standard 27“panel; 4.2kg/cabinet;20.8kg/㎡

Benefit Description

27”Diagonal Flat Plate Design，standard cabinet resolution easy to built 2K,4K,8K video wall;

Specifications

3 products

Item	TXP108 12V5	TXP135 15V5	TXP162 18V5
Pixel Configuration	Micro 4in1	SMD 1212	SMD 1515
Pixel Pitch (mm)	1.2	1.5	1.8
Display Resolution	2K	2K	2K
Module Size（mm）	150x 337.5	150x 337.5	150x168.75
Pixel Density (Point/㎡)	640000	409,600	284444
Brightness calibrated (adjustable)	500-600nits	500-600nits	≤400nits
Color Temperature Adjustable (K)	6500K, 9300K, 12000K preset	6500K, 9300K, 12000K preset	6500K, 9300K, 12000K preset
Viewing Angle (Horizontal)°	170	170	170
Viewing Angle (Vertical)°	170	170	150
Contrast Ratio	10000:1	10000:1	10000:1
AC operation voltage	100-240V; 50/60Hz	100-240V; 50/60Hz	100-240V; 50/60Hz
Max Power Consumption (KW)	1.6	2	2.4
Average Power Consumption (KW）	≤0.57	≤0.75	1.22
Refresh rate(Hz)	3840	3840	3840
Watching Distance	≥3m	≥3m	≥5m
Suggested Space	30㎡--60㎡	30㎡--60㎡	60㎡--80㎡
Service Access	Front Access	Front Access	Front Access
System	Android 11.0/Windows 10(Optional)	Android 11.0/Windows 10(Optional)	Android 11.0/Windows 10(Optional)
Android Memory/Storage	8G/128G	8G/128G	8G/128G
Android CPU	Cortex-A73 x 4 + Cortex-A53 x4	Cortex-A73 x 4 + Cortex-A53 x4	Cortex-A73 x 4 + Cortex-A53 x4
Android GPU	ARM Mali-G52 *8	ARM Mali-G52 *8	ARM Mali-G52 *8
Input Ports	HDMI2.1×2/HDMI2.0×2/Type Cx1/USBx6	HDMI2.1×2/HDMI2.0×2/Type Cx1/USBx6	HDMI2.1×2/HDMI2.0×2/Type Cx1/USBx6
Output Ports	HDMI2.1	HDMI2.1	HDMI2.1
Control Ports	RS232	RS232	RS232
Touch Technology	IR Touch	IR Touch	IR Touch
Touch Point	20 points	20 points	20 points
Standard	Power cord, remote control, screen mirroring device, sound bar, telescopic pointer	Power cord, remote control, screen mirroring device, sound bar, telescopic pointer	Power cord, remote control, screen mirroring device, sound bar, telescopic pointer
Optional	Floor stand, OPS, Touch	Floor stand, OPS, Touch	Floor stand, OPS, Touch

Download the Brochure
