InnoMax Series

Product Header Image

  • High Brightness & Color Performance

  • Robust Construction

  • Wide Operating Range

  • Flexible Installation

Download the Brochure

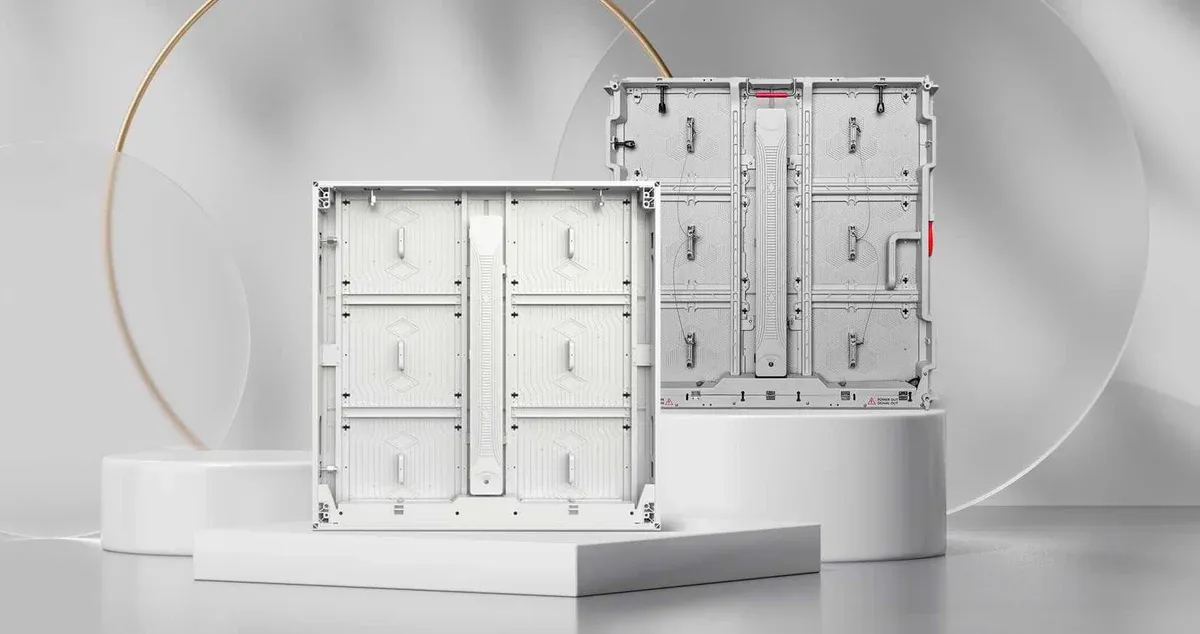

The InnoMax Series is a high-performance, energy-efficient outdoor LED display built for durability, clarity, and versatility. Utilizing advanced common cathode technology and a robust die-cast aluminum design, this series delivers exceptional brightness and color accuracy while significantly reducing power consumption and heat generation. Ideal for large-scale outdoor applications, the InnoMax Series offers seamless installation, reliable operation in extreme environments, and stunning visual impact for advertising, public information, and entertainment displays.

  • Product Icon Image

    High Brightness

    Ideal for direct sunlight environments with 10,000 nits output and optimized viewing angles.

  • Product Icon Image

    Creative Displays

    Modular design allows for creative configurations, including curved and large-scale video walls.

  • Product Icon Image

    Energy Saving

    Common cathode design, the average power as low as 186 W/m² (common cathode models) reduces operational costs.

Product Image 0

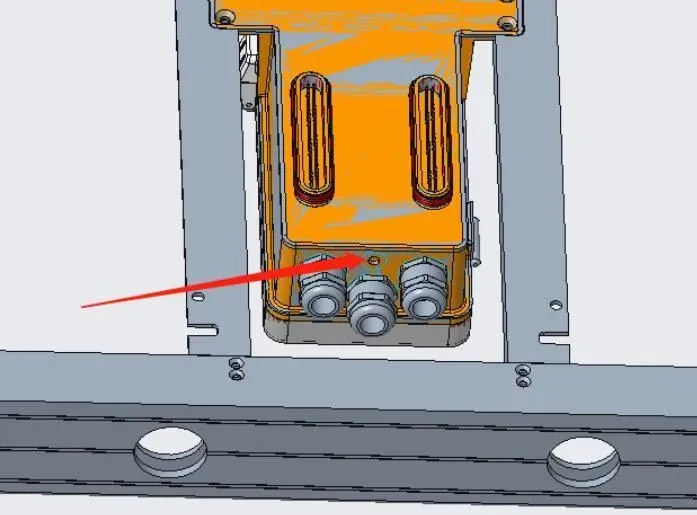

New added vent valve

For the InnoMax series of LED display, a vent valve has added in the bottom of power cabinet, it can adjust inner gas pressure, recoil temperature rise and balance inner environment.

Product Image 1

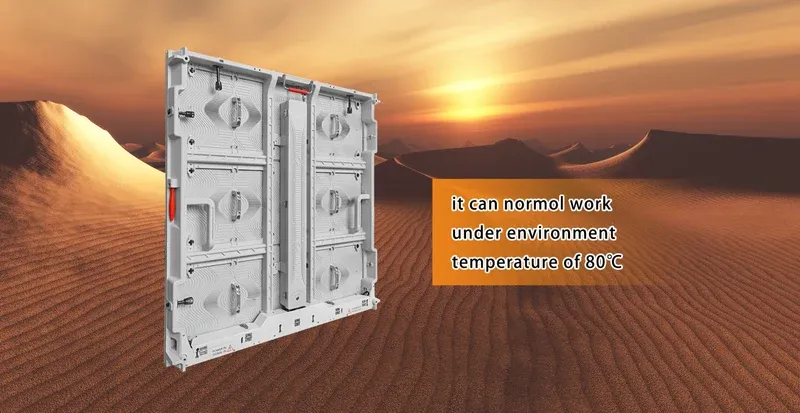

Strong Adaptability for outdoor environmental condition

InnoMax Series outdoor fixed installation LED displays feature a lightweight, thin, high-strength die-casting aluminum construction with a heat-resistant design that withstands harsh weather conditions and extreme temperatures.

Product Image 2

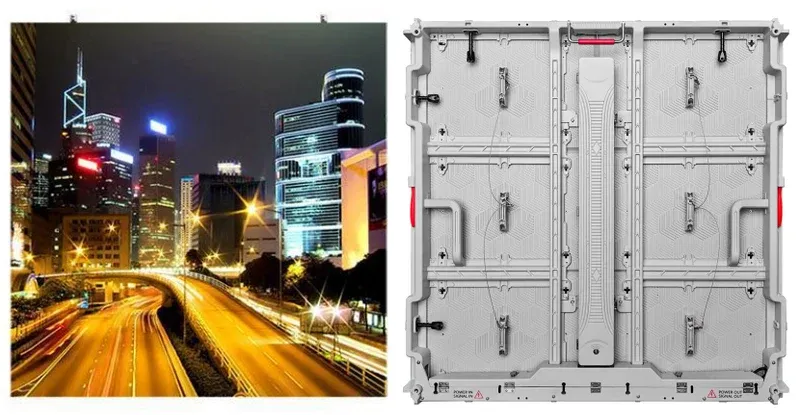

Structural Hard Link, Wireless Design.

The product structure is to adopt hard link, wireless design, its appearance is tidy and beautiful.

Product Image 3

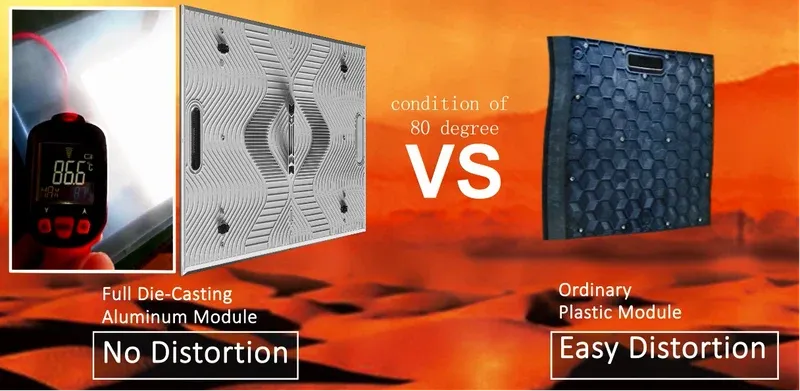

Aluminum Profile Cabinet, Lightweight, Safety and Reliability, No Distortion

InnoMax series of LED display is to adopt aluminum profile cabinet, the weight of single cabinet is just 24.5KG

Product closing image 1

Specifications

Item
InnoMax04
InnoMax05
InnoMax06
InnoMax08
InnoMax10
LED Type
-
-
-
-
-
Pixel Pitch(mm)
4.4444
5.7143
6.6667
8
10
Pixel Pitch(WxH)
216x216
168x168
144x144
120x120
96x96
Cabinet Dimension(WxHxD,mm)
960x960
960x960
960x960
960x960
960x960
Cabinet Area(m2)
0.92
0.92
0.92
0.92
0.92
Weight (kg/cabinet; kg/m2)
26.5; 28.8043
26.5; 28.8043
26.5; 28.8043
26.5; 28.8043
26.5; 28.8043
Pixel Density (dots/m2)
50,625
30,625
22,500
15,625
10,000
Contrast Ratio
5000:1
5000:1
5000:1
5000:1
5000:1
Peak Power(W/m2)
550
550
550
550
550
Average Power(W/m2)
186
186
186
186
186
Refresh Rate(Hz)
3840
3840
3840
3840
3840
Working Temperature(°C)
-40~80
-40~80
-40~80
-40~80
-40~80
Working Humidity(RH)
10~98% RH non-condensing
10~98% RH non-condensing
10~98% RH non-condensing
10~98% RH non-condensing
10~98% RH non-condensing
