Flexible COB LED with Superior Reliability

InnoFine-F

Product Header Image

  • High Brightness

  • High Reliability

  • High Contrast Ratio

  • Flexible Bending

Download the Brochure

The InnoFine-F Series brings flexibility and durability together with cutting-edge COB LED technology. Designed with flip-chip common cathode architecture, it offers high brightness, ultra-high contrast, and excellent reliability while keeping heat generation low. Engineered for creative applications, the InnoFine-F supports up to 45° bending angles without compromising performance, making it perfect for curved or irregular LED installations. Combined with IP65-level protection and rigorous reliability testing, it ensures stable operation in demanding environments.

  • Product Icon Image

    Creative Splicing

    Delivers superior brightness and allows creative curved designs up to 45°.

  • Product Icon Image

    High Reliability

    COB technology with common cathode design ensures stability, even under continuous operation.

  • Product Icon Image

    Durable Protection

    IP65 protection with anti-static and anti-bumping design for safer use.

Product Image 0

MicroLED high brightness, high contrast

MicroLED in 2000nits and 20000:1 contrast ratio.

Product Image 1

DCI-P3 Wide Color Gamut

delivers richer, more vibrant, and true-to-life colors for an exceptional visual experience.

Product Image 2

More Details at Low Brightness

MicroLED High Brightness, Hight Contrast. In 2000nits and 30000:1 contrast ratio.

Product Image 3

P0.9-P1.25-P1.56 COB

COB Flip Chip on Board, with ultra-small dot pitch and self-developed ink packaging process.

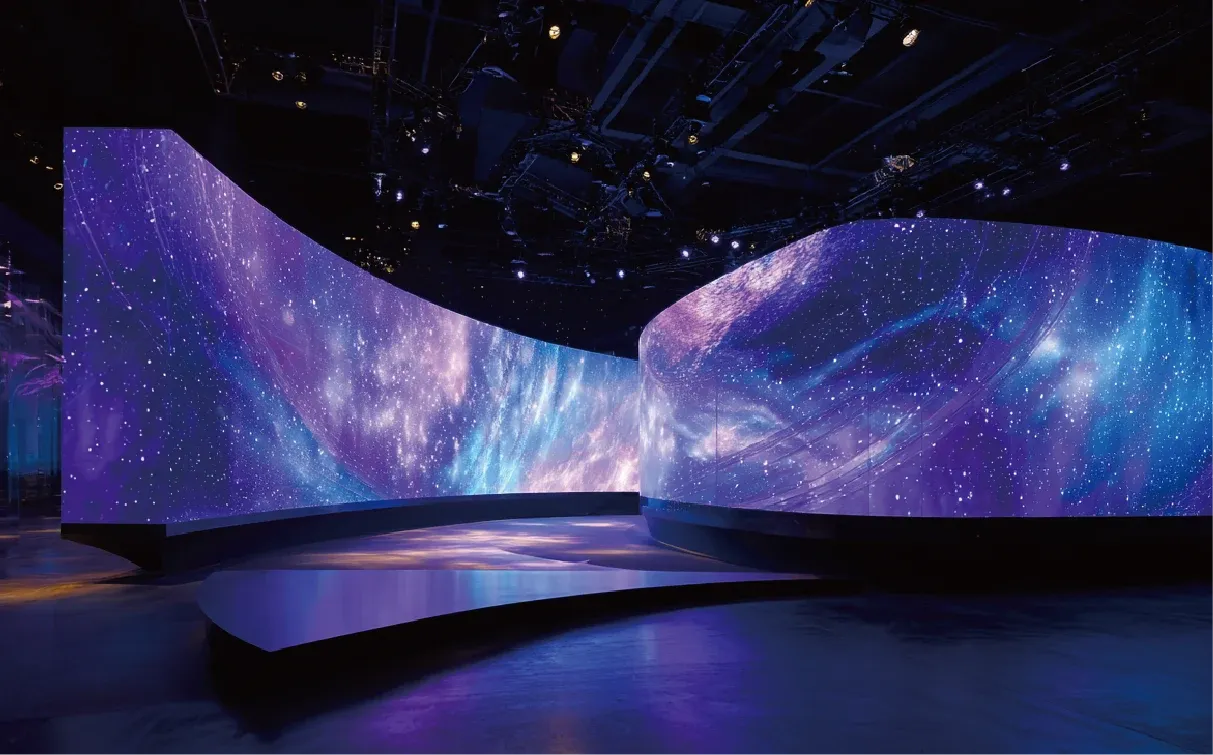

Product closing image 1

Specifications

Item
InnoFine009-F
InnoFine012-F
InnoFine015-F
InnoFine018-F
Pixel Pitch (mm)
0.9375
1.25
1.5625
1.875
Scanning Mode
45S
45S
54S
45S
Module Dimensions (mm) (WxH)
300 x 168.75
300 x 168.75
300 x 168.75
300 x 168.75
Cabinet Size (mm) (WxH)
DEPENDS ON STRUCTURE
DEPENDS ON STRUCTURE
DEPENDS ON STRUCTURE
DEPENDS ON STRUCTURE
Cabinet Resolution (WxH)
320 x 180
240 x 135
192 x 108
160 x 90
Led Configuration
COB
COB
COB
COB
Pixel Density (Dot/m²)
1,137,778
640,000
409,600
284,444
Gray Scale
13-22bit
13-22bit
13-22bit
13-22bit
Contrast
30000:1
30000:1
30000:1
30000:1
Brightness (cd/m²)
1200
1200
1200
1200
Module Quantity/Cabinet
Depends On Structure
Depends On Structure
Depends On Structure
Depends On Structure
Cabinet Material
Aluminum
Aluminum
Aluminum
Aluminum
Viewing Angle (Degree)
Horizon 160 Vertical 160
Horizon 160 Vertical 160
Horizon 160 Vertical 160
Horizon 160 Vertical 160
Average Power(Watts)/m²
~150
~140
~150
~150
Max Power(Watts)/m²
~320
~330
~300
~310
Lifetime (hrs)
100,000
100,000
100,000
100,000
Operating Temperature
-10℃ ~ +45℃
-10℃ ~ +45℃
-10℃ ~ +45℃
-10℃ ~ +45℃
Operating Humidity
10% ~ 90%
10% ~ 90%
10% ~ 90%
10% ~ 90%
Refresh Rate (Hz)
3840 / 7680
3840 / 7680
3840 / 7680
3840 / 7680
