Outdoor Commercial

InnoEco Series

Product Header Image

  • Common Cathode with Energy-Saving

  • Four-level energy-saving technology

  • Real color, more realistic picture

  • Structure optimization, flexible installation

Download the Brochure

The InnoEco Series is an energy-efficient, high-performance outdoor LED display designed for superior visual clarity and environmental adaptability. Featuring advanced common cathode technology, robust die-cast aluminum construction, and intelligent energy management, this series delivers brilliant imagery while significantly reducing power consumption and heat generation. Ideal for a wide range of outdoor applications, the InnoEco Series combines sustainability with reliability, making it the perfect choice for modern digital signage and public displays.

  • Product Icon Image

    Energy Saving

    Average power as low as 168 W/m² (common cathode models).

  • Product Icon Image

    Front Maintenance

    Tool-free quick locks, lightweight cabinets, and accessible components.

  • Product Icon Image

    Flexible Size Options

    P3.91 and other models enable immersive 3D effects without glasses.

Product Image 0

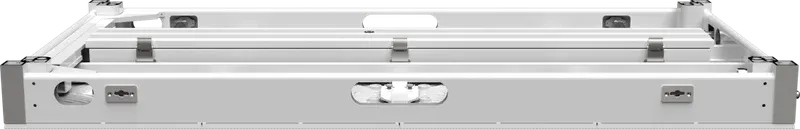

Aluminium profile cabinet structure

With light weight, corrosion resistance, high precision, good flatness, not easy to deform, good heat dissipation, etc.

Product Image 1

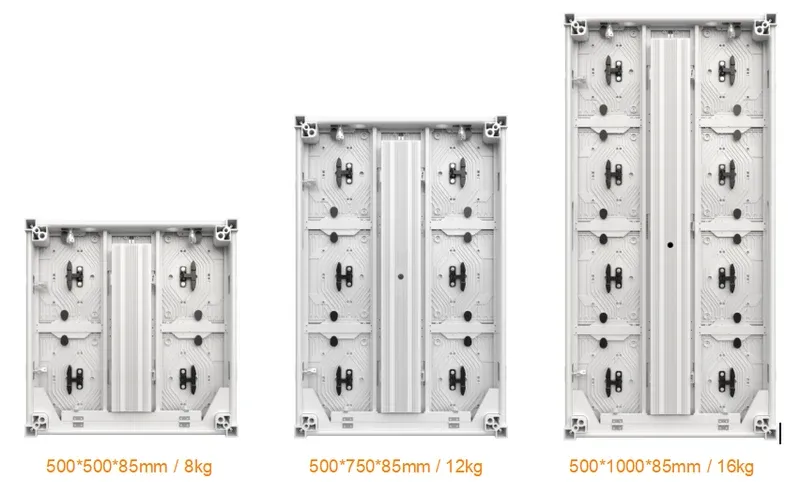

Multiple cabinet sizes

Can be spliced with each other to meet the needs of splicing of different area sizes.

Product Image 2

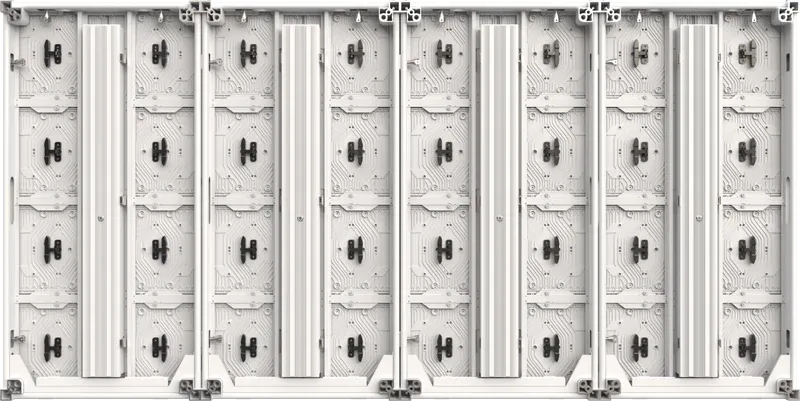

Hardwired and wireless throughout

The structure of the product is hard-wired, hidden wire design, the whole wireless, neat and beautiful appearance.

Product Image 3

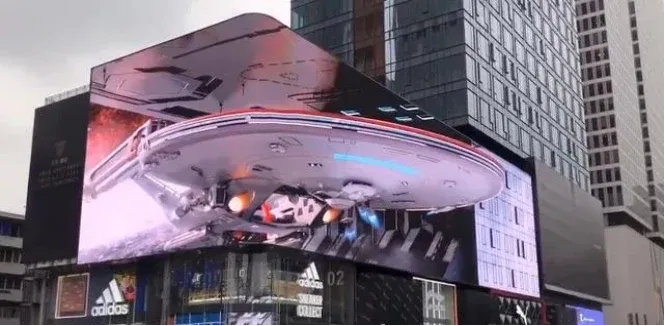

Naked eye 3D display

InnoEco039 supports 90-degree curved splicing, which easily realises outdoor close-up naked eye 3D display effect.

Product Image 4

Waterproof design

IP66 protection level, using outdoor special independent waterproof module and excellent sealing waterproof cabinet

Product Image 5

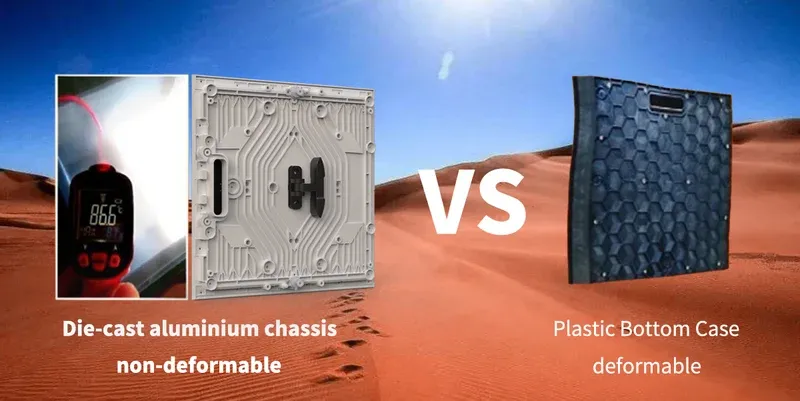

Fire retardant

InnoEco series adopts die-casting aluminium module, profile aluminium cabinet, no deformation under high temperature conditions

Product closing image 1
Product closing image 2

Specifications

Item
InnoEco019
InnoEco026
InnoEco029
InnoEco039
InnoEco048
Pixel Configuration
SMD 1415
SMD 1415
SMD 1415
SMD 1415
SMD 1921
Pixel Pitch (mm)
1.95
2.604
2.97
3.91
4.81
Module Resolution (WxH)
128x128
96x96
84×84
64×64
52×52
Module Size (mm)(WxH)
250×250×18
250×250×18
250×250×18
250×250×18
250×250×18
Module Composition (WxH)
2×4
2×4
2×4
2×4
2×4
Cabinet Resolution (WxH, px)
256×512
192×384
168×336
128×256
104×208
Cabinet Size(mm)
500×1000×85
500×1000×85
500×1000×85
500×1000×85
500×1000×85
Cabinet Area (㎡)
0.5
0.5
0.5
0.5
0.5
Cabinet Weight(kg/cabinet)
16
16
16
16
16
Cabinet Material
Aluminium Profiles
Aluminium Profiles
Aluminium Profiles
Aluminium Profiles
Aluminium Profiles
Cabinet Density（dot/m²）
262144
147,456
112,896
65,536
43,264
IP Level (front/ rear)
IP65
IP65
IP65
IP65
IP65
Brightness (nits) (after calibration)
≥4500
≥4500
≥4500
≥5500
≥4500
Color Temperature (K)
6500-9000
6500-9000
6500-9000
6500-9000
6500-9000
Viewing Angle (H/V)(°)
140 / 120
140 / 120
140 / 120
140 / 120
140 / 120
Contrast Ratio
≥5000:1
≥5000:1
≥5000:1
≥5000:1
≥5000:1
Max. Power Consumption (W/cabinet; W/㎡)
500
500
500
600
500
Avg. Power Consumption (W/cabinet; W/㎡) (300nit)
168
168
168
200
168
Input Voltage
AC100~240V
AC100~240V
AC100~240V
AC100~240V
AC100~240V
IC Driving(s)
1/32
1/24
1/21
1/8
1/13
Refresh rate(Hz)
3840
3840
3840
3840
3840
Maintenance Method
Front and Rear
Front and Rear
Front and Rear
Front and Rear
Front and Rear
Working Temperature (°C)
-10℃ ~ 50℃
-10℃ ~ 50℃
-10℃ ~ 50℃
-10℃ ~ 50℃
-10℃ ~ 50℃
Working Humidity (RH)
10 ~ 98% no condensation
10 ~ 98% no condensation
10 ~ 98% no condensation
10 ~ 98% no condensation
10 ~ 98% no condensation
