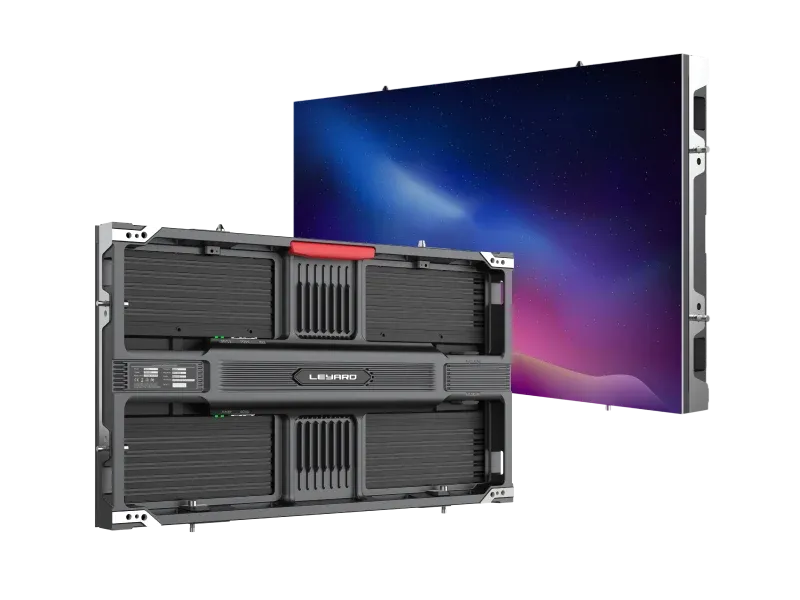

NEXT GEN MG INDOOR FINE PITCH LED DISPLAY

MG-2 Series

Product Header Image

  • Micro LED flip chip, flatform modules to displays

  • More Details at Low brightness

  • Front Access, Fast Installation

  • Careful designed modules to the GOB ready, much better flatness

Download the Brochure

The new generation MG-2 Series is the upgrade of the very successful MG series. It supports front and rear installation, front access. DCI P3 optional; EMC ClassB optional; GOB optional; and selectable control system.

  • Product Icon Image

    Power/ Signal Redundancy

    Dual power supply and signal redundancy ensure uninterrupted operation in mission-critical environments. Automatic failover keeps your display running 24/7 without manual intervention.

  • Product Icon Image

    Wide Viewing Angle

    160° horizontal and vertical viewing angles deliver consistent color and brightness from any position, ideal for large venues and open public spaces.

  • Product Icon Image

    Super Heat Management

    Advanced thermal design with aluminum heat sink and intelligent fan control maintains optimal operating temperature, extending LED lifespan and reducing maintenance costs.

Product Image 0

MicroLED high brightness, high contrast

MicroLED in 2000nits and 20000:1 contrast ratio.

Product Image 1

Flat, From Modules to Displays

Experience of fine pixel pitch in decades, the superior performance.

Product Image 2

More Details at Low Brightness

Reveals subtle details even in low-light environments, perfect for broadcast and control room applications.

Product Image 3

HDR - High Dynamic Range

HDR content is in 10 bits, new gen MG can deliver a much bigger color volume than SDR LED display.

Product Image 4

Front Access, Fast Installation

Multiple installation method, front/rear installation and front access.

Product Image 5

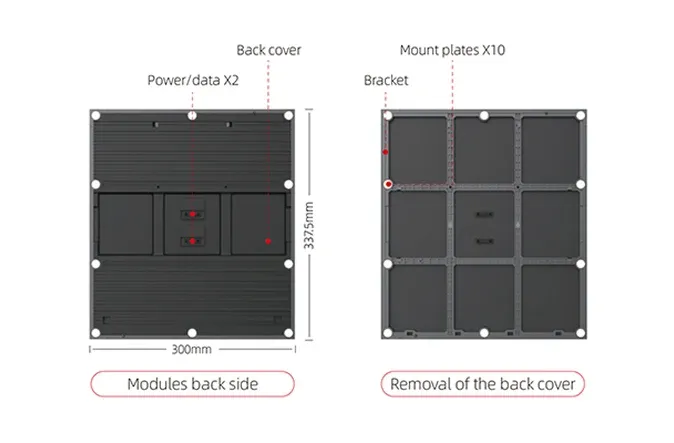

Dual Interface LED Module

Carefully designed modules to be GOB ready, much better flatness.

Product Footer Image

Specifications

Item
MG0093-2
MG0125-2
MG0156-2
MG0187-2
MG025-2
LED Type
COB
SMD
SMD
SMD
SMD
Pixel Pitch(mm)
0.93
1.25
1.56
1.87
2.5
Pixel Pitch(WxH)
320x360
240x270
192x216
160x180
120x135
Cabinet Dimension(WxHxD,mm)
600x337.5x45
600x337.5x45
600x337.5x45
600x337.5x45
600x337.5x45
Cabinet Area(m2)
0.2025
0.2025
0.2025
0.2025
0.2025
Weight (kg/cabinet; kg/m2)
4.2; 20.7
4.5; 22.2
4.5; 22.2
4.5; 22.2
4.5; 22.2
Pixel Density (dots/m2)
1076374
640000
409600
284444
160000
Contrast Ratio
20000:1
5000:1
5000:1
5000:1
5000:1
Peak Power(W/m2)
420
515
480
450
400
Average Power(W/m2)
140
158
150
135
120
Refresh Rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Working Temperature(°C)
-20 ~ 40
-20 ~ 40
-20 ~ 40
-20 ~ 40
-20 ~ 40
Working Humidity(RH)
10 ~ 90% no condensation
10 ~ 90% no condensation
10 ~ 90% no condensation
10 ~ 90% no condensation
10 ~ 90% no condensation
